Tight Buffer Distribution PVC/LSZH Jacketed Cable

Application:
This cable is used for interconnection of the distribution boxes and end devices. The cable is very suitable for various indoor and outdoor applications, including routing between buildings within ducts and inside building up to riser shafts.
Description: Construction:

The Distribution Cable consists of color-coded PVC tight buffered fibers. The fibers are reinforced with aramid yarn for superior strength and contains no metallic elements. The fibers are jacketed with Flame Retardant PVC or LSZH compound.

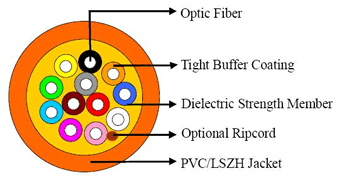

Tight Buffer Distribution PVC or LSZH Jacketed Cable

Physical Properties:

Fiber Count

Nominal Weight
(kg/km)

Nominal Weight
(lb/kft)

Nominal Outer Diameter
(mm)

Nominal Outer Diameter
(in)

Maximum Pulling Load

Installation
(N/lb)

In Service
(N/lb)

2-6

26.0

17.45

5.0

0.197

1000/225

290/65

8-12

50.0

33.56

7.5

0.296

1425/320

500/112

14-24

140.0

93.96

13.0

0.512

2670/600

890/200

26-36

200.0

134.23

16.5

0.650

4448/1000

1490/335

38-48

300.0

201.34

18.0

0.709

4448/1000

1490/335



Mechanical Properties:

Minimum Bending Radius:
Under installation:    20×OD
During operation:     10×OD
Temperature Range:
Operating Temperature Range:
-40℃(-40℉) to +70℃(+158℉)
Storage Temperature Range:
-50℃(-58℉)to +70℃(+158℉)

Maximum Compressive Load: 2000N
Repeated Impact:      2.9 N.m (J)  3×2 impacts
Twist (Torsion):       180×10 times, 125×OD
Cyclic Flexing:         25 cycles for armoured cables.;
100 cycles for unarmoured cables.
Crush Resistance: 1485N/cm (850lb/in)

Fiber Compliance:

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

Safety Compliance:

General Purpose Grade
Flammability Test: OFN (UL1581)
Riser Grade
Flammability Test: OFNR/FT4 (UL1666)
Plenum Grade
Flammability Test: OFNP/FT6 (UL 910)
FRPVC Grade
Flammability Test: IEC60332-1
LSZH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2

LSFROH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A

FR Grade
Fire Resistance Test: IEC 60331 / BS 6387 CWZ



Standard Compliance:
GR409-CORE                                          TIA/EIA 568B.3               ICEA-S-83-596

Features:

  • Used in LAN and distribution applications where compact size and lightweight are required
  • Suitable for both indoor and outdoor use - no need for splicing at the building entrance
  • Flame-retardant or LSZH version for indoor installations
  • Fungus-resistant, water-resistant, and UV-resistant for outdoor installations
  • Cable can be armoured for additional protection in direct burial and aerial installations
  • Highest specific strength-to-weight ratio for limited conduit space
  • Economical for longer distance runs where cable cost are significant
  • High quality tight-buffered coating on fiber for environmental and mechanical protection
